Nano Transmitter Platform

Real-time monitoring,
at the speed of every second.

A compact family of Nano transmitters and sensors built for room-scale, lab-scale, and unit-scale monitoring. Continuous 1-second measurement, hot-swap probes, and a private 2.4 GHz wireless network — every reading flowing into the MySirius platform in real time.

1second Measurement Frequency
1,000ft Wireless Range
6+years Battery Life
Explore the Catalog Talk to a Specialist

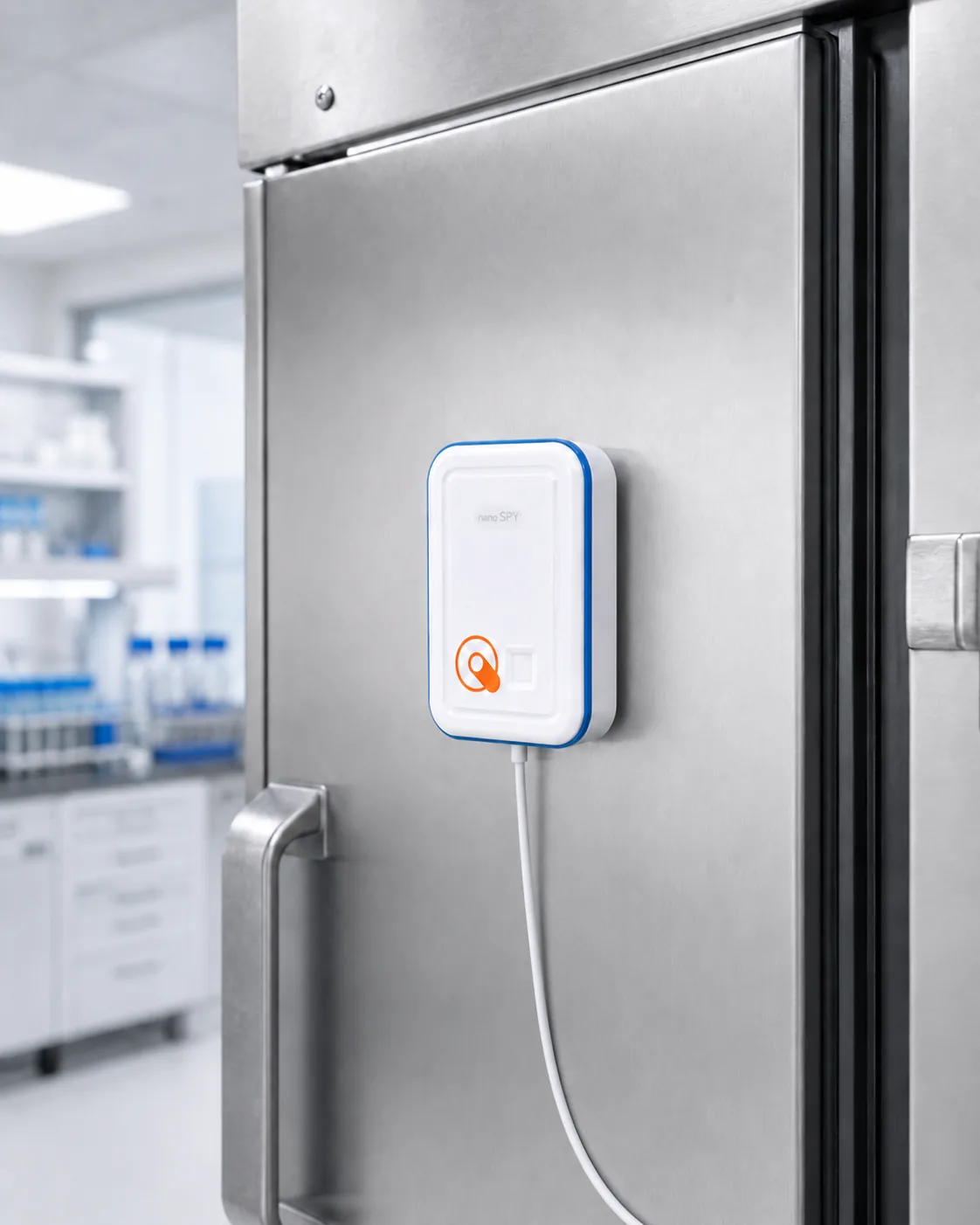

Nano SPY T2 installed on a laboratory refrigerator door
Vaccine Fridge · V‑03 4.2°C In spec · live
Private wireless 2.4GHz · 1,000 ft
System Architecture

From sensor to audit-ready record, in seconds.

Nano sensors measure continuously and broadcast over a private 2.4 GHz network. The Nano Gateway relays measurements — Wi-Fi, Ethernet, BLE, or 4G — into MySirius, where data becomes a compliant, real-time record.

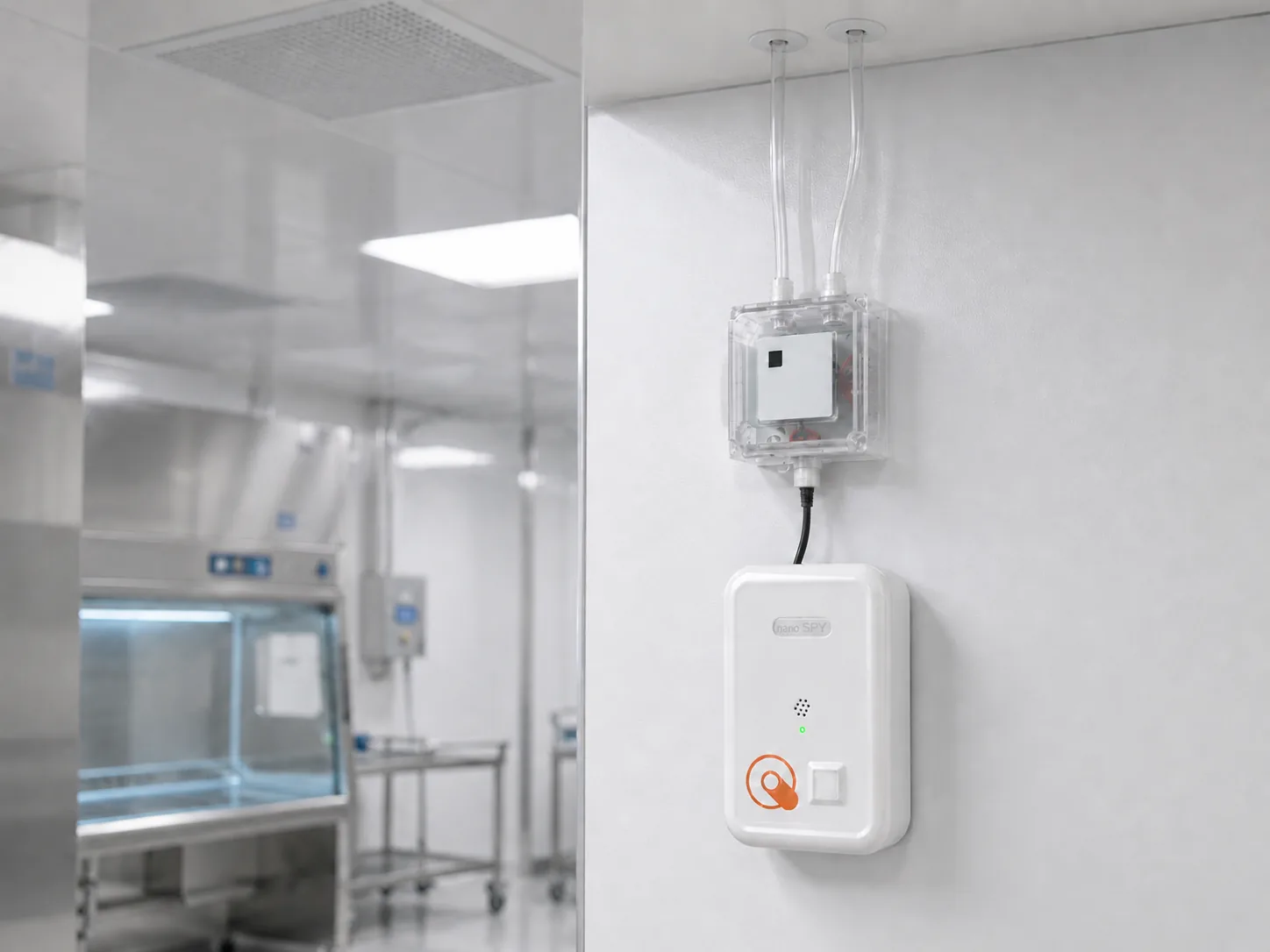

2.4 GHz · 802.15.4 Nano SPY sensor with differential pressure probe, mounted on a cleanroom wall
Stage 01 · Sense

Nano SPY Sensors

Temperature, humidity, electrical, pressure & more — placed directly inside chambers, where conditions actually matter.

11 device variants
6 yr battery · IP68
Wi-Fi · Ethernet · BLE · 4G Nano Gateway transmitter
STAGE 02 · GATEWAY

Nano Gateway

Collects every Nano packet within a 1,000 ft radius and forwards to MySirius over Wi-Fi, Ethernet, BLE, or cellular 4G.

Wi-Fi · Ethernet · BLE · 4G
Up to 1,000 ft collection range
MySirius LIVE
Vaccine Fridge · T1 OK
4.2°C
2.0 / 8.0 · 1s tick
Incubator 03 · TH DOOR OPEN
37.4°C
Open 41s · 5%CO₂
ULT Freezer · T3 OK
−81.6°C
3 sensors · 21 CFR 11
Stage 03 · Document

MySirius Cloud

Real-time logging, alerting, and ALCOA+ records. 21 CFR Part 11, GMP, HACCP, USP by design.

Tamper-evident
Audit-defensible
Shared by every Nano SPY

The platform underneath the catalog.

These capabilities ship with every device below — so the spec sheets only call out what makes each model different.

1sec true real-time
Measurement frequency
Adjustable 1 sec – 24 hr
6+years
Battery life
Replaceable AA battery
10,000
Local readings
On-device redundant memory
IP68
Sealed & magnetic
Food-contact polycarbonate · Cleanroom certified
The Nano Catalog

Choose by parameter, specify by environment.

Every Nano SPY shares the same encrypted mesh network, the same 6-year battery platform, and the same MySirius integration. The differences are what they measure — and where they belong.

9 Nano transmitters Endless monitoring scenarios All include MySirius Cloud
Temperature PN 11567X
Nano SPY T1 — mini temperature data logger, front view

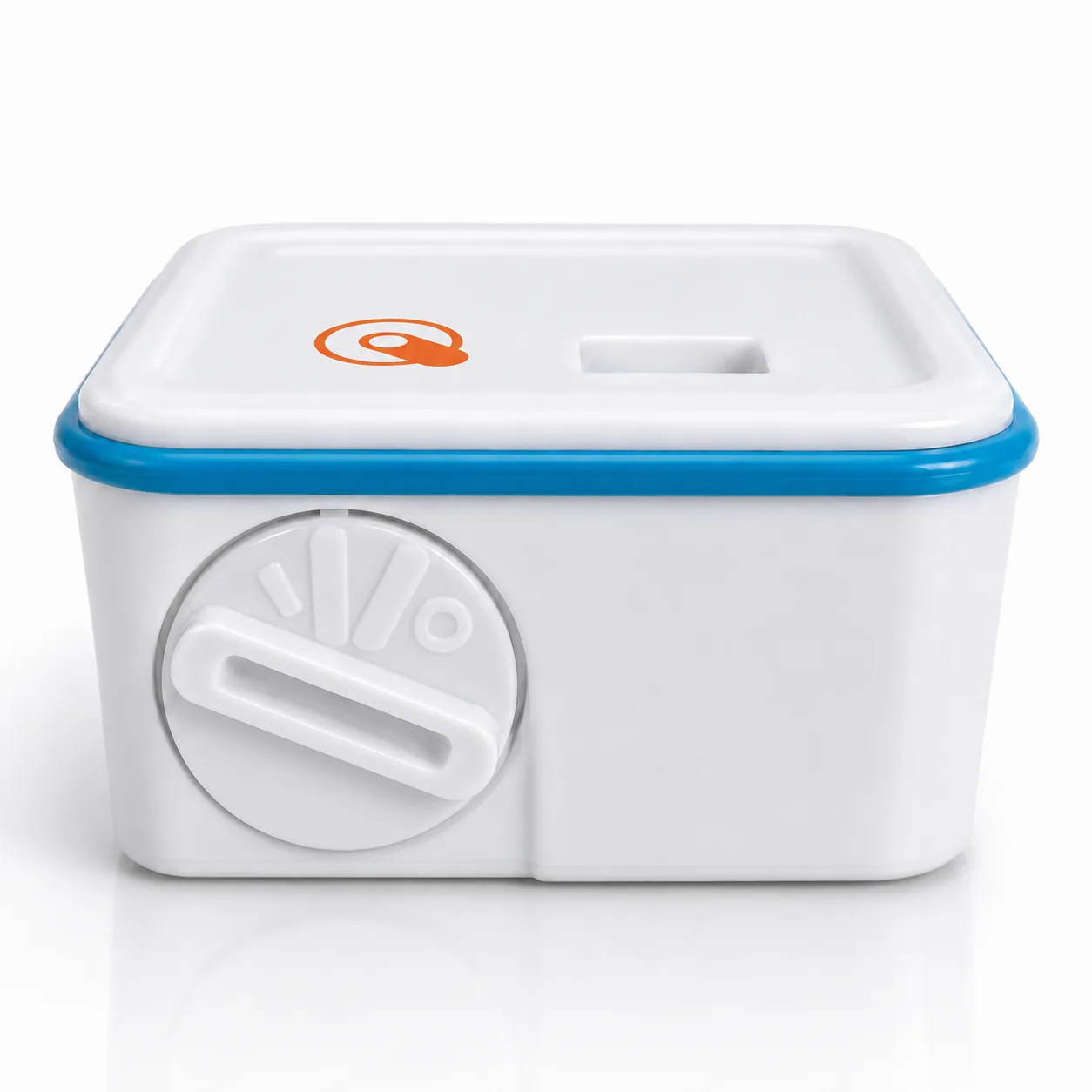

Nano SPY T1 — flat bottom view showing tool-free battery lock

Nano SPY T1

Mini temperature data logger with internal PT100 — drop-in monitoring for fridges, freezers, and cabinets.

Range−40 to +85 °C
Accuracy±0.3 °C
SensorInternal PT100
Use caseFridges, cabinets
EN 12830 Food contact case Magnet mount
Tech Spec User Guide
Temperature PN 11569X

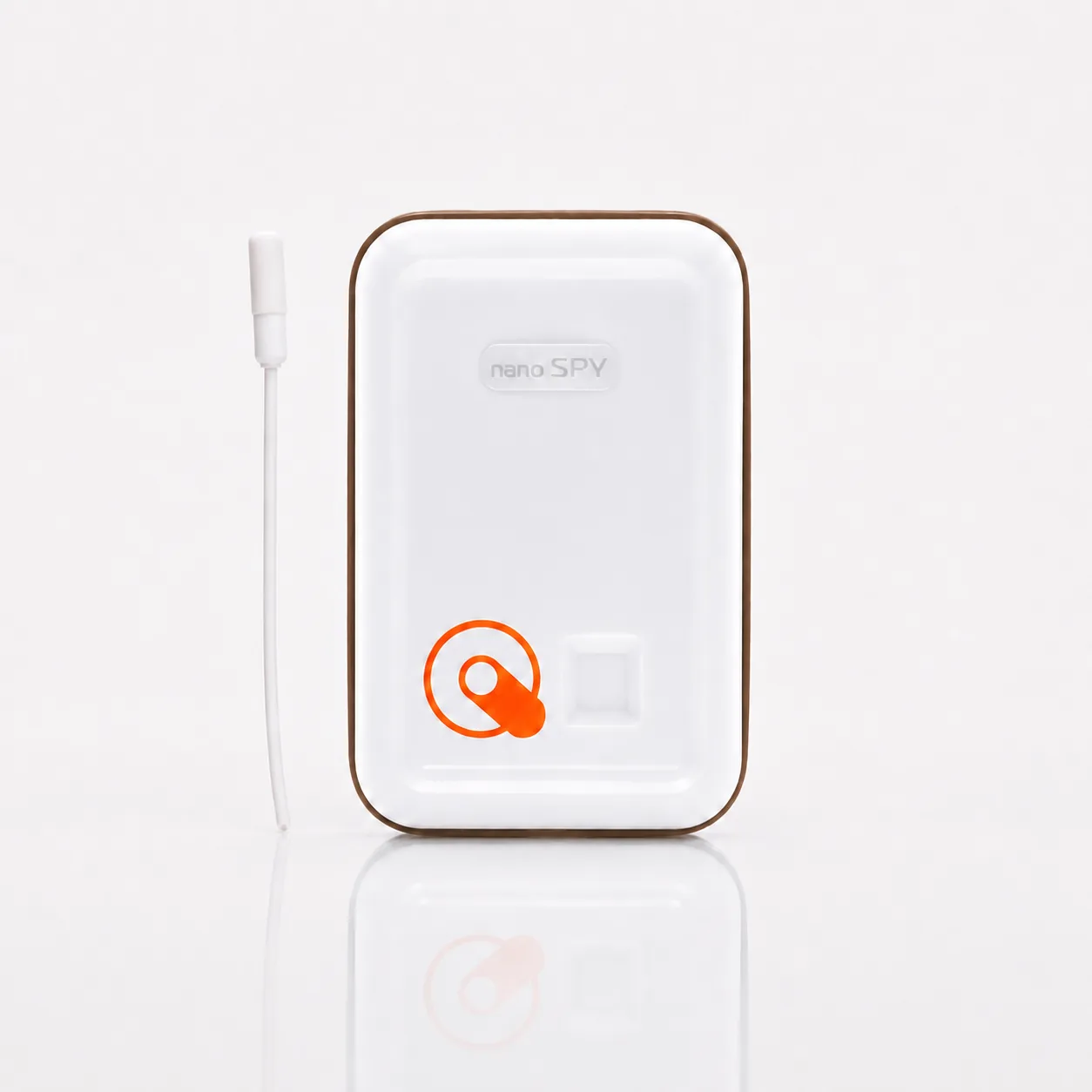

Nano SPY T2 — front view with external PT100 probe

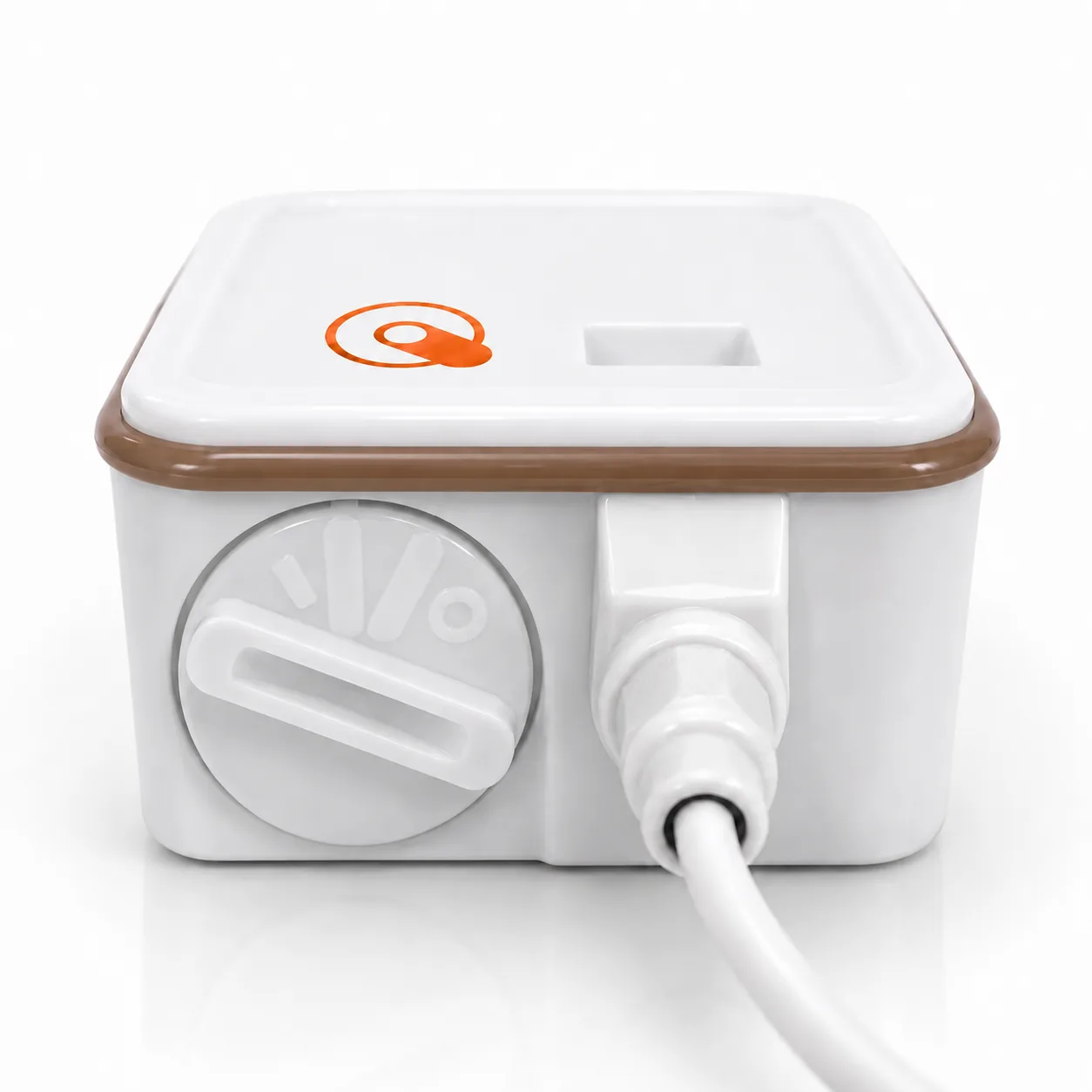

Nano SPY T2 — bottom view with sealed white cable gland and tool-free battery lock

Nano SPY T2

External probe temperature recorder for water baths, deep freezers, and incubators.

Range−50 to +105 °C
Accuracy±0.2 °C
ProbeExternal PT100
Use caseWater baths · Freezers
External probe Stainless probe Pharmacies
Tech Spec User Guide
Cryo & ULT · Autoclave PN 11693X

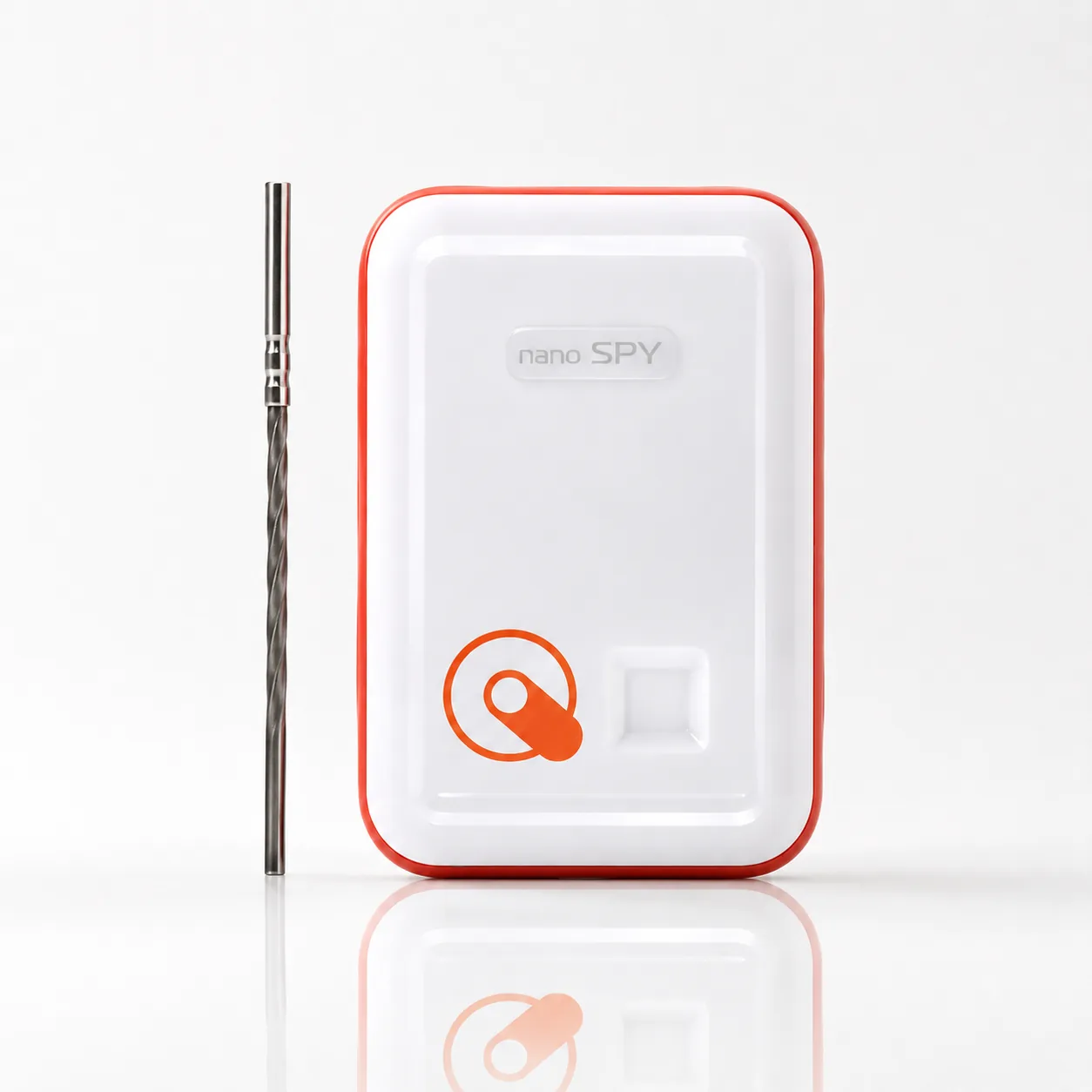

Nano SPY T3 — front view with rigid stainless steel probe for extreme temperatures

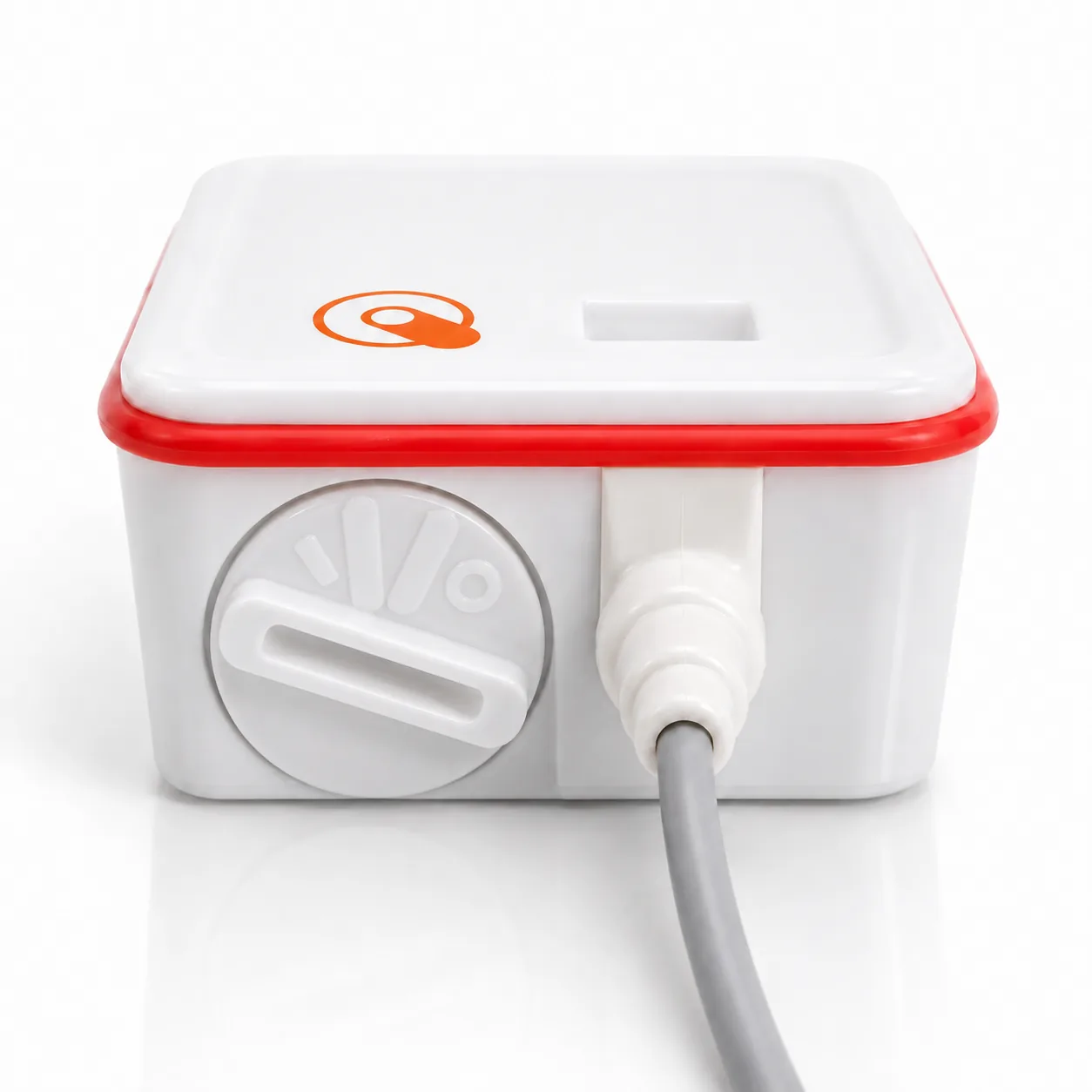

Nano SPY T3 — bottom view showing sealed grey cable gland and battery lock

Nano SPY T3

Extreme-temperature recorder. Low-T variant for LN₂ & ULT freezers; High-T variant for sterilization & autoclave cycles.

Range (Low T)−200 to 300 °C
Accuracy±0.2 °C
ProbeStainless PT100
Ø2.9 × 25 mm
Use caseLN₂ · ULT · Autoclave
Biorepositories ULT freezers Autoclaves Ovens
Tech Spec User Guide
Temp + RH PN 11568X

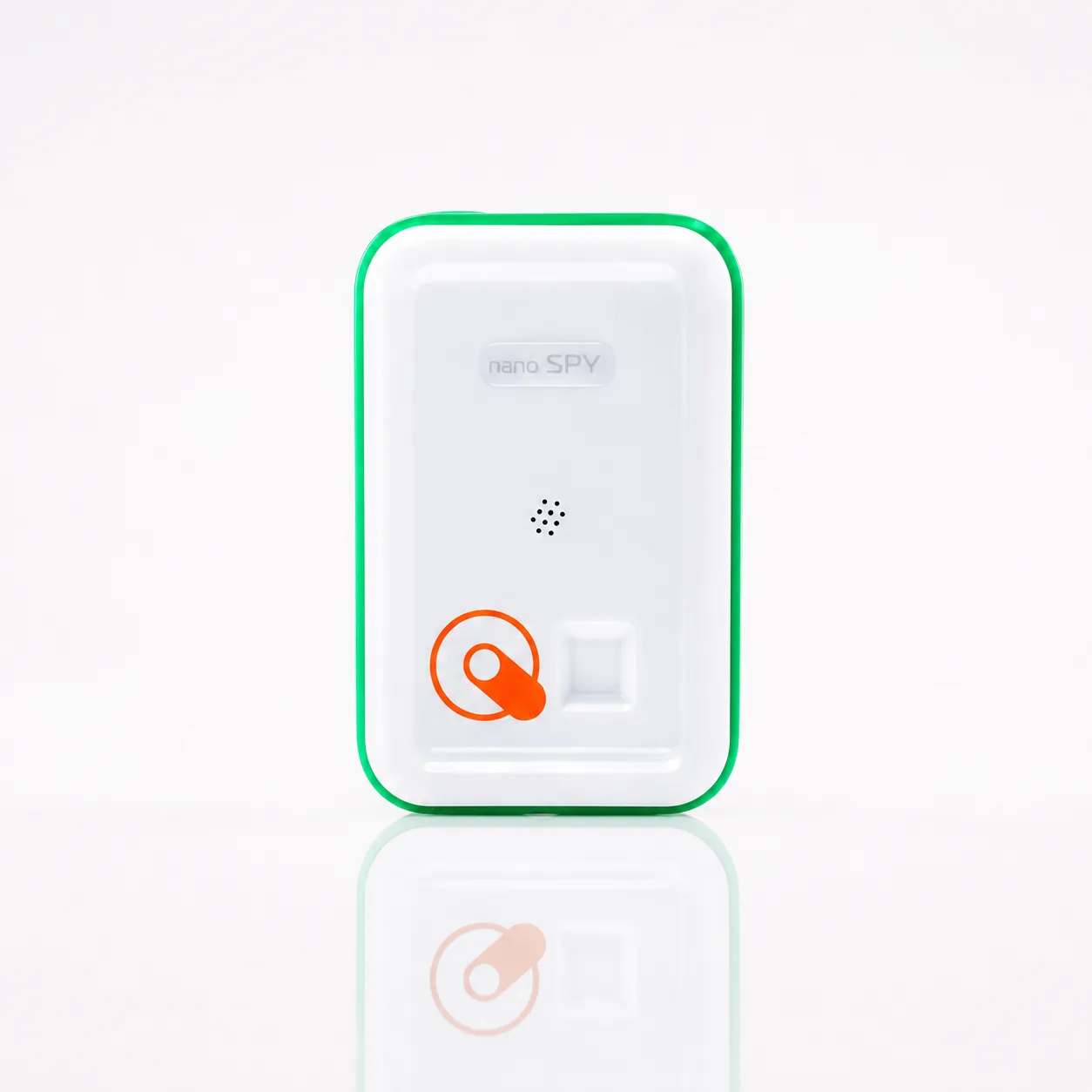

Nano SPY TH — combined temperature and humidity recorder, front view with green seal

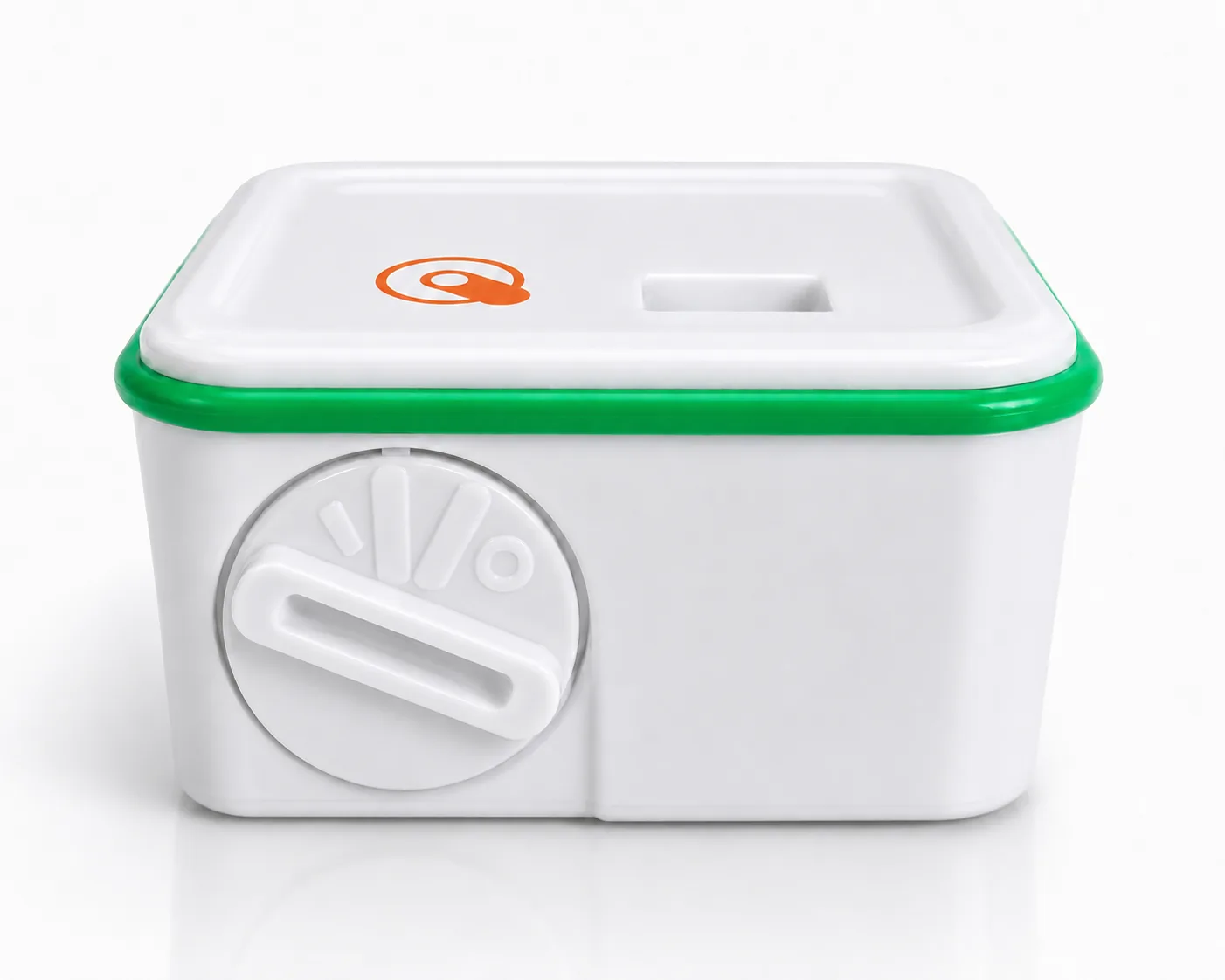

Nano SPY TH — flat bottom view with green humidity-grade seal and tool-free battery lock

Nano SPY TH

Combined temperature & humidity recorder with Sensirion digital sensor — discreet enough for any chamber.

Range−30 to +70 °C
0–100 %RH
ACCURACY±0.4 °C ±4 %RH
Comm2.4 GHz
Use caseAmbient · Cleanrooms
Ambient conditions Cleanrooms Document storage
Tech Spec User Guide
Temp + RH High Accuracy
PN 13240X

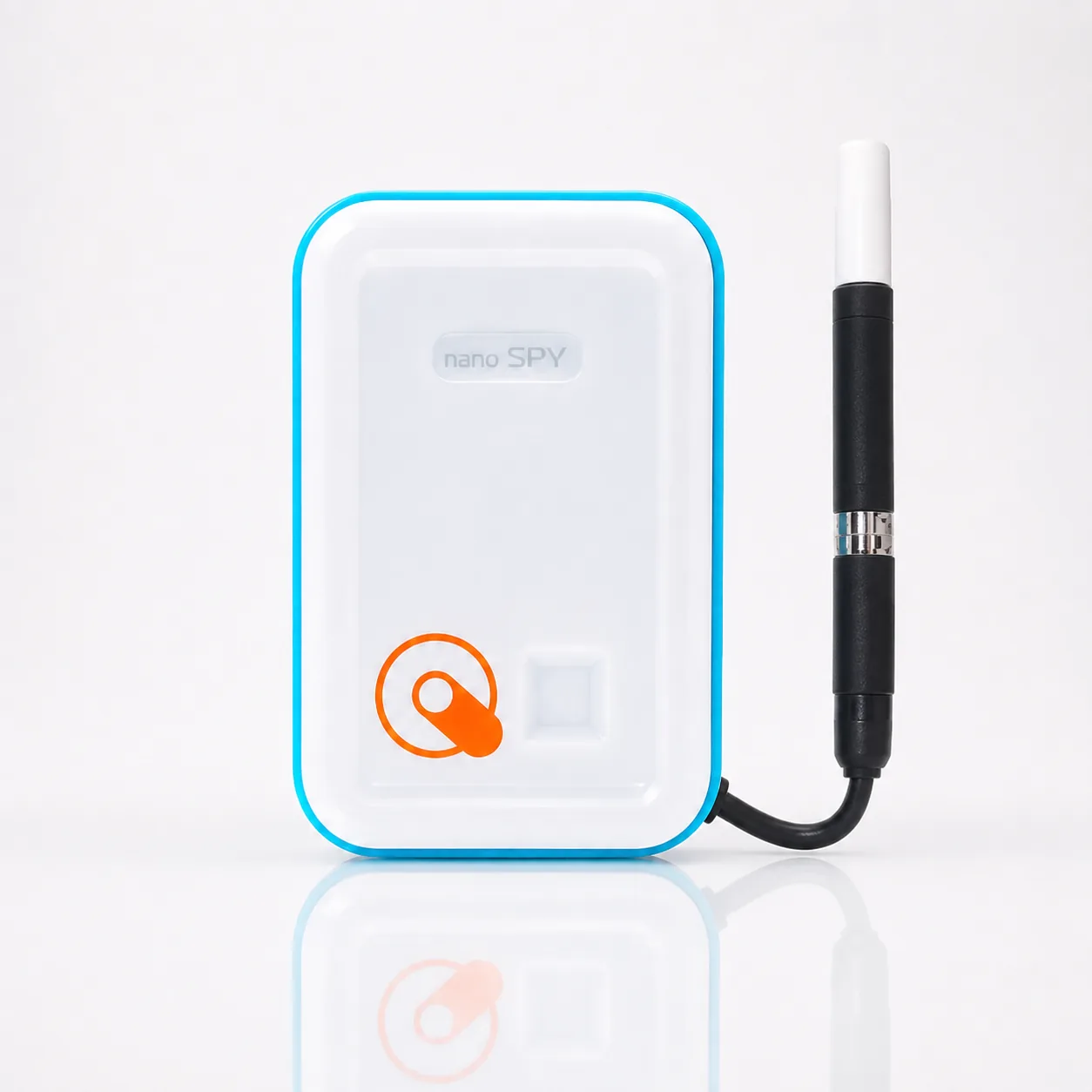

Nano SPY TH High Accuracy — front view with HYGROMER HT-1 probe on cable

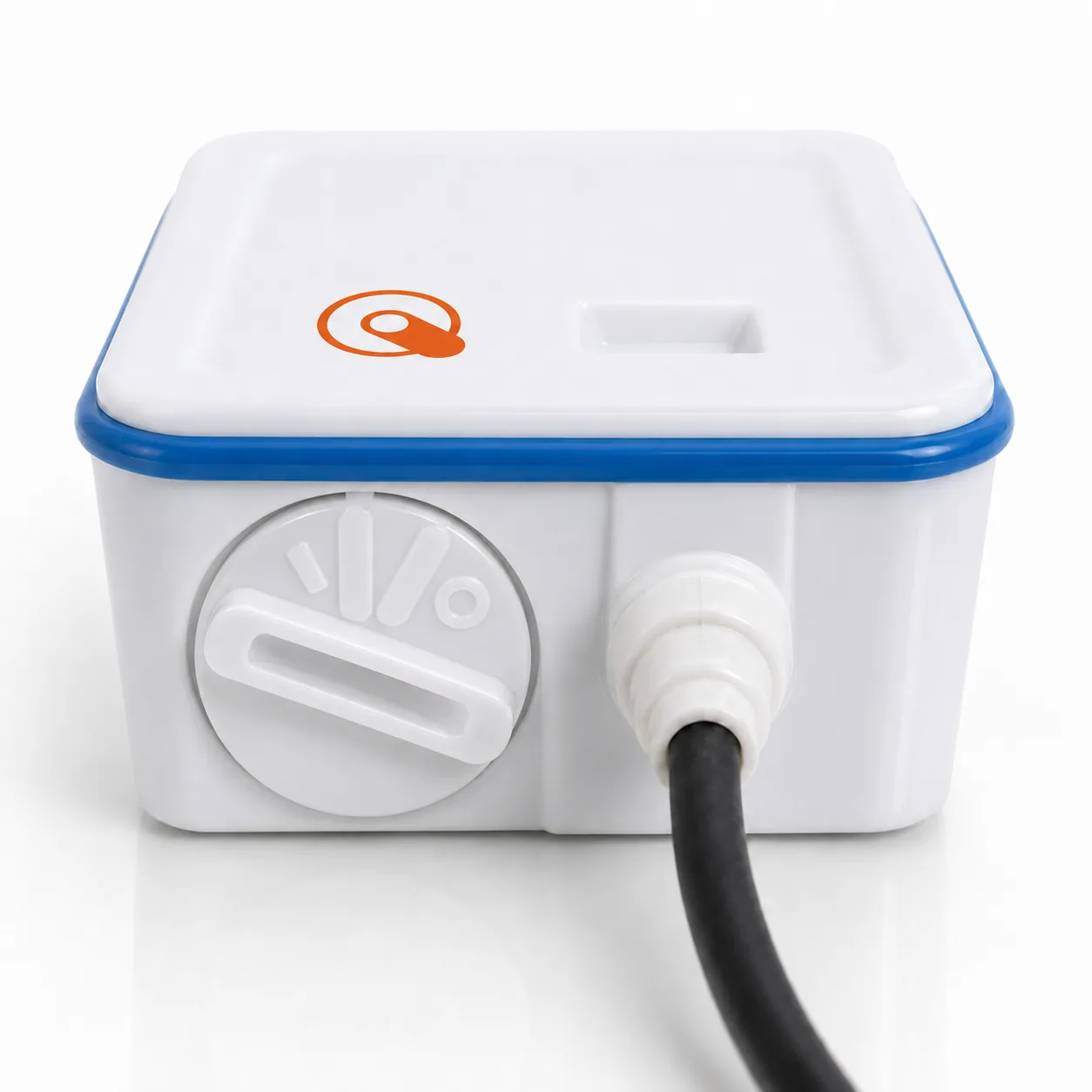

Nano SPY TH High Accuracy — bottom view with sealed black cable gland and battery lock

Nano SPY TH High Accuracy

Pharma-grade T & RH with PT 1000 Class 1/3 B and HYGROMER HT-1 probe on a 2 m cable.

Range−40 to +85 °C
0–100 %RH
ACCURACY±0.3 °C  ±1 %RH
Cable2 m
Use caseLong-term stability
GMP stability Mapping studies Validation
Tech Spec User Guide
Dual Channel PN 11541X
Nano SPY Twin — front view with external probe on cable
Nano SPY Twin — bottom view with sealed white cable gland and tool-free battery lock

Nano SPY Twin

Two channels in one device — internal + external probe for split chambers and mixed enclosures.

Internal−30 to +70 °C
Accuracy±0.3 °C
ChannelsT1 + T2 in one
Use caseSplit fridge-freezers
Combo fridge-freezer Two enclosures Density savings
Tech Spec User Guide
Door Event PN 13395X

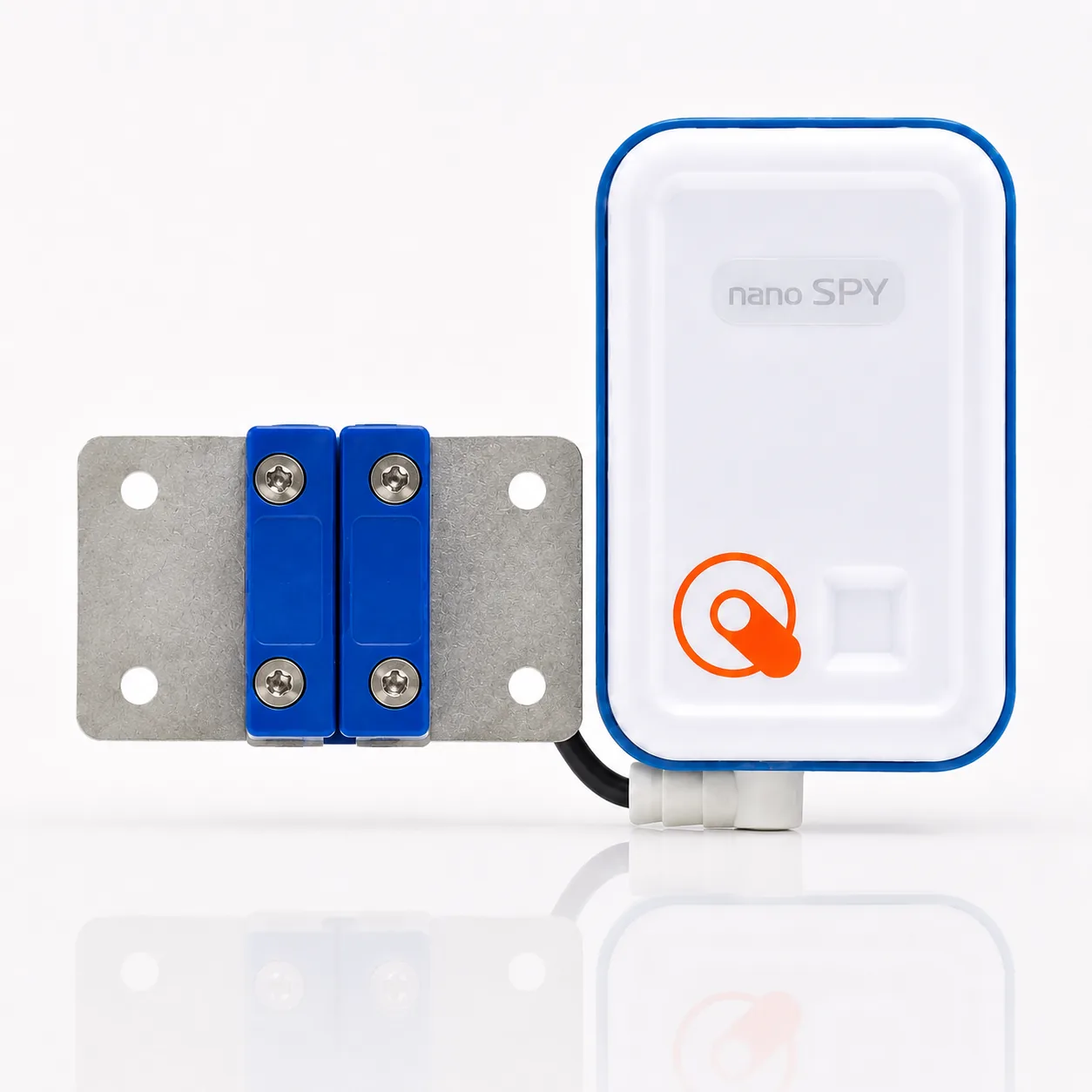

Nano SPY Door Contact — magnetic contact sensor with mounting plate
Nano SPY Door Contact — bottom view with sealed black cable gland and tool-free battery lock

Nano SPY Door Contact

Detects extended door openings before they cause excursions — tied directly to MySirius alerting.

SensorMagnetic contact
Cable20 cm
Battery6 years
Use caseDoor open · ajar
Excursion prevention SOP enforcement Walk-in coolers
Tech Spec User Guide
Universal Analog PT100 · 4–20 mA CO₂ · O₂ Pressure Electrical
PN 12540X

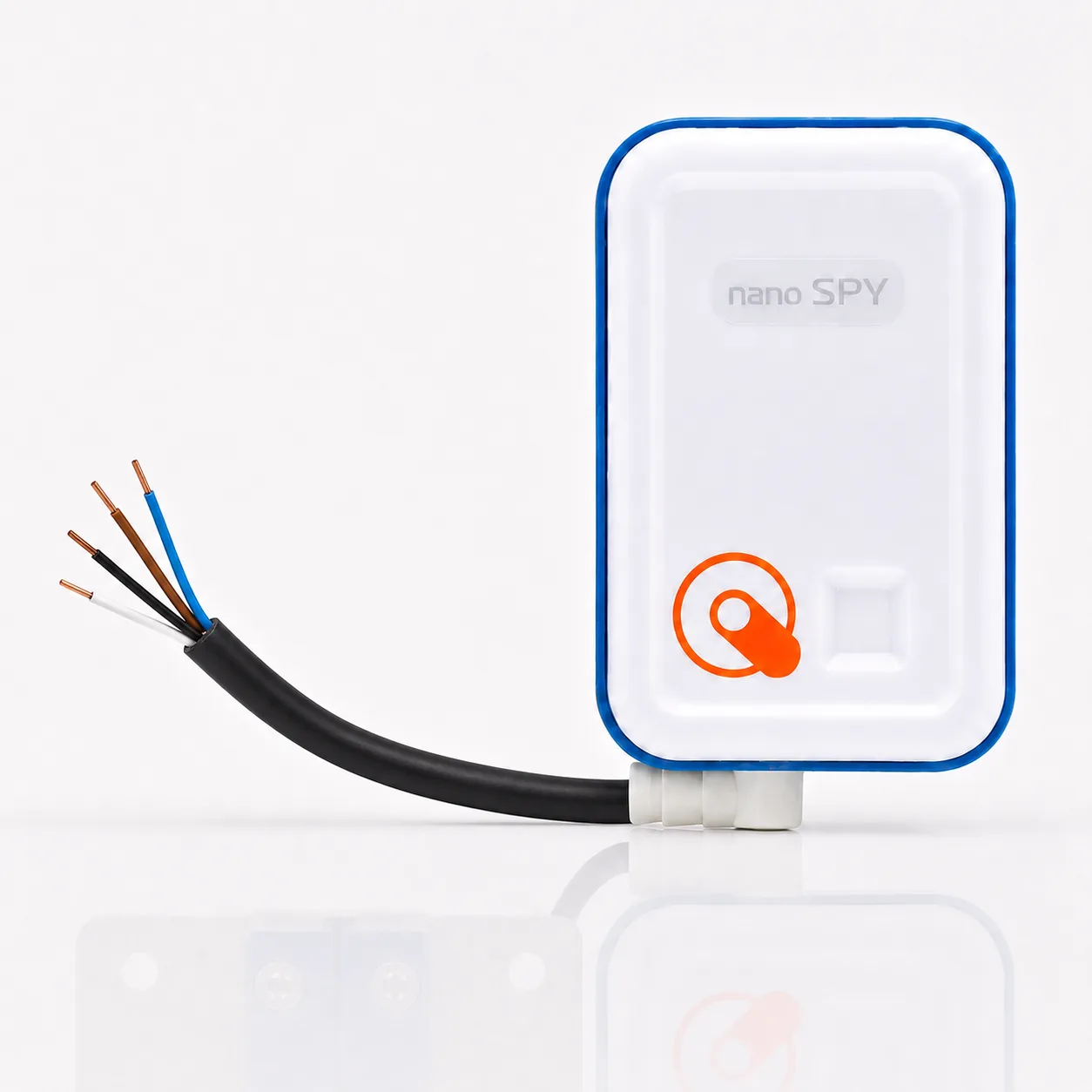

Nano SPY U — universal analog input recorder, front view with bare-wire lead-out
Nano SPY U — bottom view with sealed black cable gland and tool-free battery lock

Nano SPY U

Universal analog input — connect any sensor (PT100, 4–20 mA, 0–1 V, dry contact) and put it on the network. Monitor electrical events such as power failure or electrical usage.

PT100 Range−200 to +1,000 °C
Accuracy±0.2 °C
InputsPT100 · 4–20 mA
0–1 V · Dry contact
Use caseDP · CO₂ · O₂ · counts
Differential pressure CO₂ / O₂ Pulse counting Custom
Tech Spec User Guide
The Network Layer

Sensors don't work alone.
They rely on an encrypted network.

The Nano Gateway relays every Nano packet to MySirius. The 2-in-1 Relay/Alarm extends radio range across walls and large suites, and closes the loop with on-site audible alerts when an excursion fires.

Nano Gateway — the wireless relay that forwards every Nano SPY measurement to MySirius
STAGE 02 · GATEWAY

Nano Gateway

Receives data from every Nano SPY in range and pushes it to MySirius via Wi-Fi, Ethernet, BLE, or 4G — with up to 1,000 ft of collection range from a single unit.

  • Wi-Fi, Ethernet, BLE, or 4G uplink — pick what fits the site
  • 1,000 ft typical collection range at 2.4 GHz
  • BLE for fast on-site sensor pairing from a tablet
  • 8 hour backup battery & 4G failover
Tech Spec User Guide
Nano Relay/Alarm — 2-in-1 repeater and local alarm
Closing the loop

Nano SPY Relay / Alarm

2-in-1 device — extends radio coverage to distant sensors and warns locally with a light strip and buzzer the moment MySirius detects an excursion.

  • Doubles range between Gateway and Nano SPYs
  • Local audible + visual alarm — no waiting for a phone
  • 10 hr NiMH backup; 230 V AC / 5 V DC powered
  • External monitoring device port for site alarm integration
Tech Spec User Guide
A question worth asking
Could you swap a calibration probe today, mid-batch, without losing a single data point or audit trail — and still ship on time?
Run Your REM Risk Assessment
Cross-Platform

Nano is one of three QC sensor platforms.

Nano is the right choice when you need sub-second measurement, dense sensor placement, and probe hot-swap inside a single building. For long-range and outdoor coverage, LoRa wins. Compare side-by-side before you spec.

Compare LoRa · Nano · Nova
LoRa SPY wireless transmitter
LoRa®
Long-range wireless
 Nano SPY sensor
Nano
1-second measurement
Probe hot-swap
You are here Nova SPY in-chamber recorder
Nova
Event detection
Continuous
